165 DESPLAINES

Location:

Chicago, USA

Glass featured:

LITEFLAM-XT-60

Market segment:

RESIDENTIAL

Architect:

DONALD G COOPER

Frame:

SPECIAL CONSTRUCTION

Application

INTERIOR

About 165 desplaines

The architect’s goal was to design a residential tower in a heavily urban neighborhood in Chicago themed on bringing unexpected daylight into the building. The 15-story, 199-unit apartment building is in a dense area of Chicago with very little green space, guiding the architect’s desire for incorporating daylight as a design priority.

On the first floor of the two-story lobby is a large picture window overlooking a pocket park and the historic Haymarket

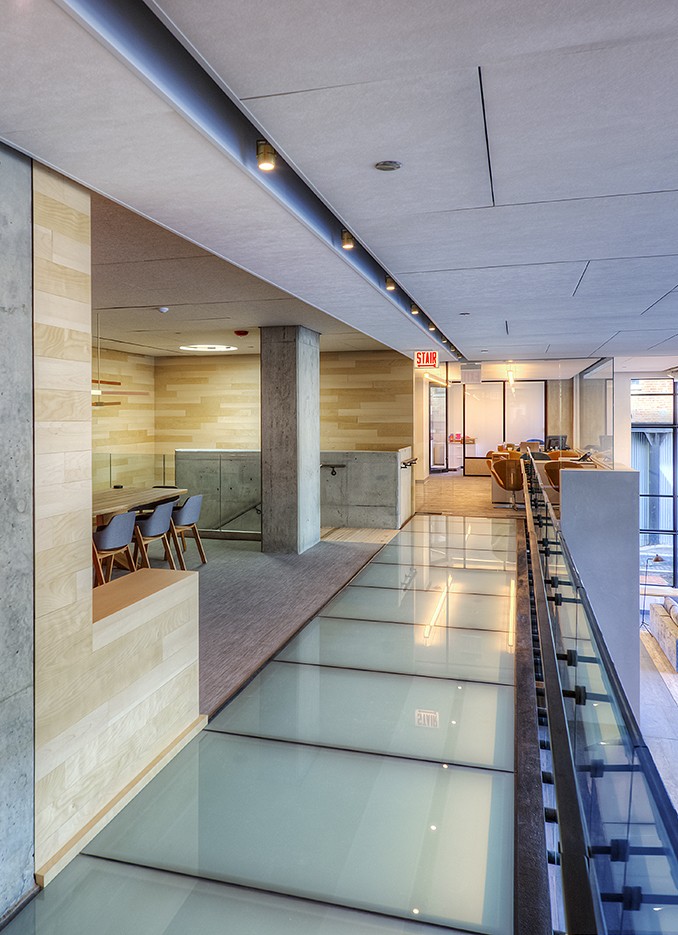

monument located on-site. On the second floor, there is a smaller, more intimate space with a view of the park and lobby below. To connect the stairs to the loft library and the building offices, instead of using concrete, carpet, and other materials that would darken the space, translucent glass was used. The glass catwalk brings daylight into the area while still being highly usable and functional.

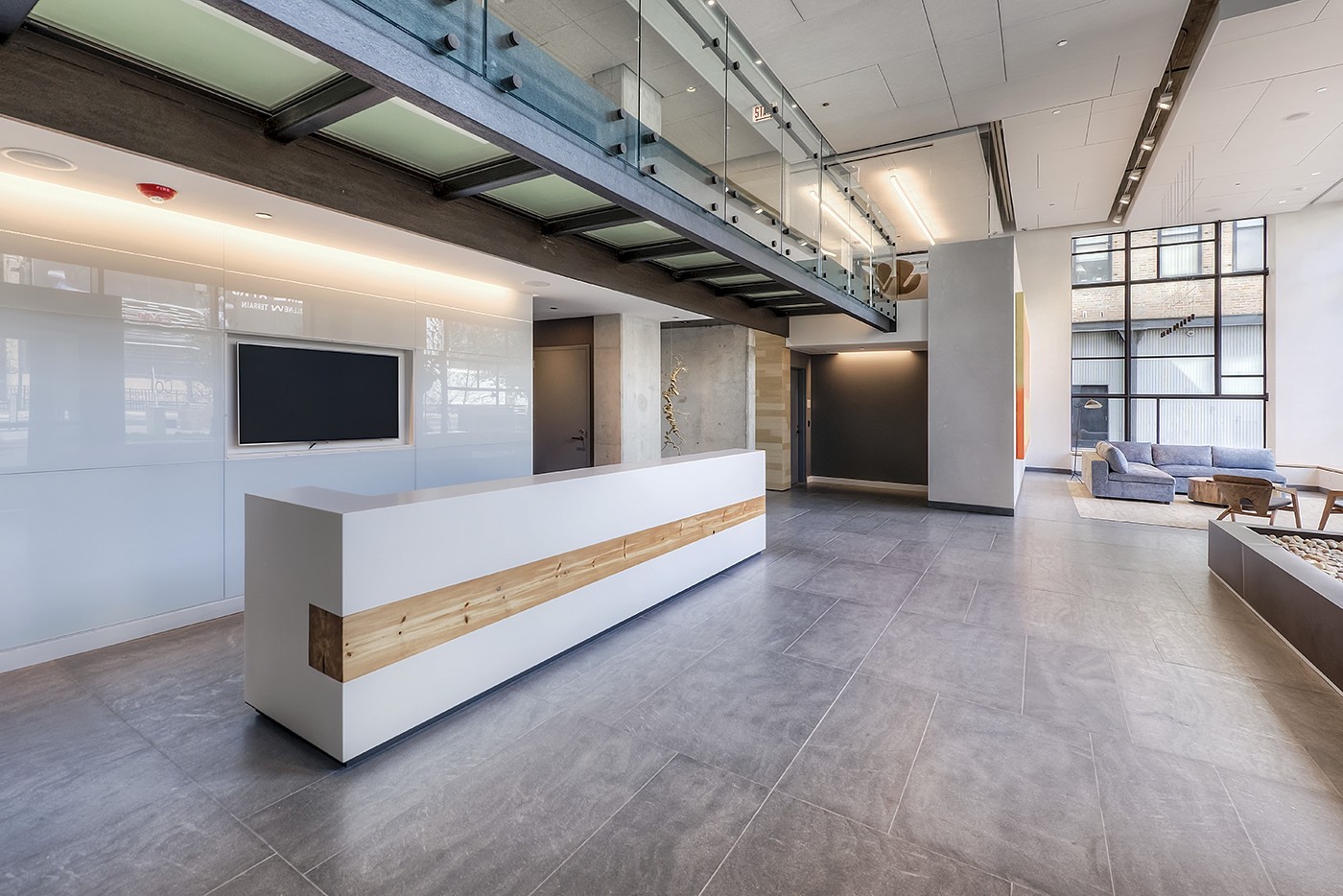

The fire-rated glass walkway, LITEFLAM XT60, allows light transition through the glass from the above skylight and surrounding windows. LED light strips were added beneath the glass to create a glowing impression, and the glass catwalk adds light to the concierge desk located directly below.


PROJECT KEY CHALLENGES

  • The city of Chicago did not recognize fire rated glass as a flooring system;
  • Demonstrate compliance of life safety requirements;
  • Demonstrate compliance of Live loading of 100 PSF while maintaining fire separation;
  • Engineered suspended glass walkway.

Project SOLUTION

Greenlite Glass Systems worked closely with, Burner Cott Architects and the structural consultants, in a design-assist capacity to engineer LITEFLAM XT 60 for the suspended glass walkways and platforms.


PROJECT KEY ACHIEVEMENTS

  • Greenlite Glass Systems worked with the City of Chicago to have fire-rated glass recognized as a flooring system;
  • Meeting building code and life safety requirements;
  • 2018 PIA Innovation Award Winner from Architectural Products Magazine.

STAKEHOLDERS

Engineering and Manufacturing:

Greenlite Glass Systems Inc

Building Owner:

Green Cities III LP

Architects:

GREC Architects
